WEC-Grid includes two pre-configured wave energy converter models for simulation studies.

Wave to Wire Model

Wave-to-Wire

In the available models below we have a custom Wave-to-Wire model that captures the full energy conversion chain from ocean waves to grid-delivered electricity.

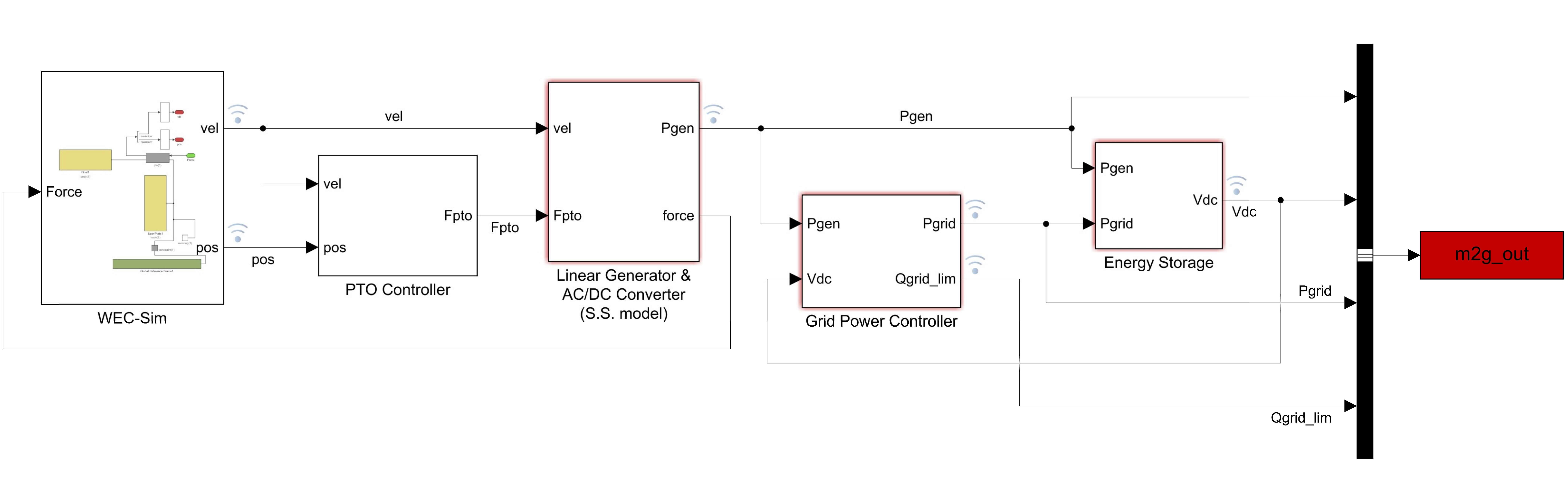

At a high level, the model includes: - Wave Energy Converter (WEC-Sim): simulates the hydrodynamic response of a floating device.
- Power Take-Off (PTO) Controller: translates motion into generator force.
- Generator & Converter: converts mechanical power into electrical power.
- Energy Storage: smooths fluctuations and stabilizes voltage.
- Grid Controller: manages power injection into the grid.

This structure enables realistic studies of how wave energy devices interact with microgrids, while remaining flexible for different control strategies and system designs.

Available Models

RM3 Reference Model

  • Description: Two-body point absorber developed by Sandia National Laboratories
  • Type: Point absorber with vertical motion
  • Download: RM3 Model (ZIP)
  • Citation: RM3

LUPA Model
